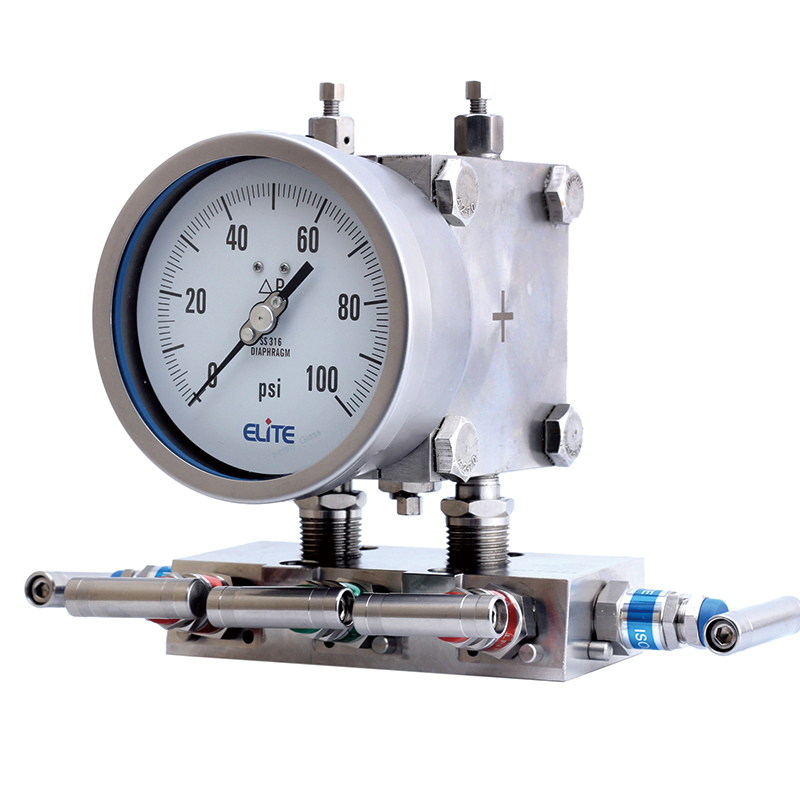

Differential Guages
SKU:
P-14
Category:
Pressure
Share:
Description
Datasheet
Product Description
SPECIAL FEATURES
Stainless Steel Case & Measuring System
Static Pressure Up to 6000 psi
Dry Or Liquid Filled
Standard Followed AMSE ?B.40.1 / EN837-3
IP:65
SPECIFICATION
Ambient Temperature : -4 ?F (-20?C) to +150?F (+65?C)
Process Temperature : Max. 212?F ( +100?C)
Operating Pressure Range : 75% of Scale Value
Over Pressure Limit : 125% of Max. Scale Valu e
Case : AISI 304 SS
Joints : Tig Argon Arc Welding
Socket : AISI 316L SS
Diaphragm : AISI 316L SS
Movement : AISI 304 SS
Dial :Aluminum
Pointer : Micro Zero Adjustable
Window : Safety Glass
Range : 15″WC-160PSI
ACCURACY AS PER ASME B.40.1
4?/6? : 3-1-3 (GRADE B)
4?/6? : 2-1-2 (GRADE A)
Datasheet
