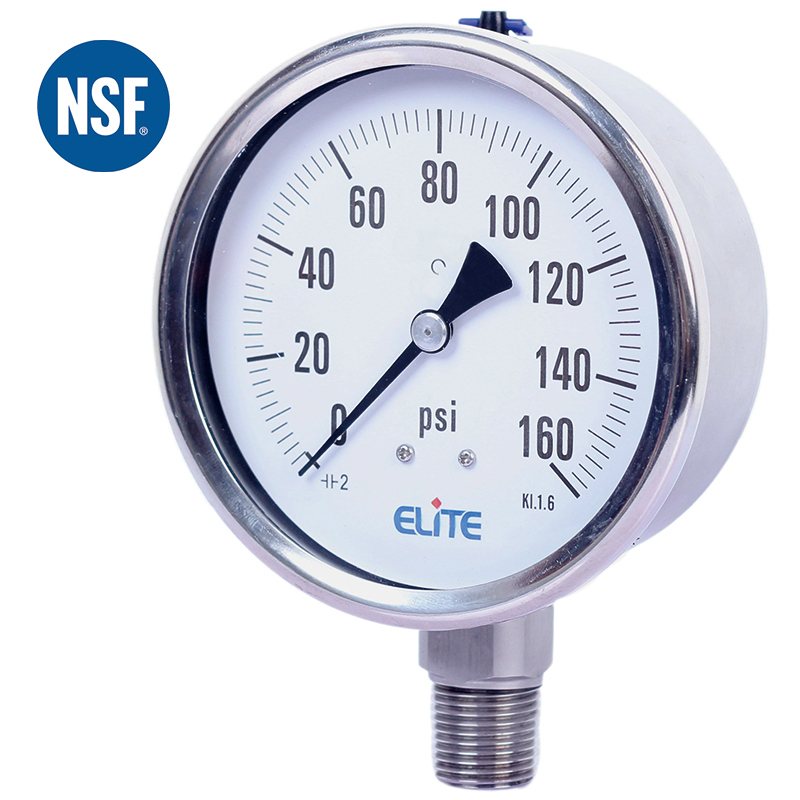

NSF Pressure Gauges

SKU:P-39

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Stainless Steel Case Welded To Socket

Dry or Liquid Filled Version

Standard Followed :

NSF/ANSI 61 Section 8-2016

NSF/ANSI 372-2016

Helium Leak Tested

Ready For Oxygen Use

NSF Certificate for drinking water application

IP:66

SPECIFICATION

Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)

Process Temperature : Max. 392?F (200?C)

Operating Pressure Range : 75% of Scale Value

Over Pressure Limit : 125% of Max. Scale Value

Case : AISI 304 SS Crimped Type

Joints : Tig Argon Arc Welding

Socket: AISI 304 SS

Bourdon: AISI 316L SS

Movement : Brass

Dial : Aluminum

Pointer : Fixed

Window : PC lens

Range : Vacuum to 10,000 psi

ACCURACY AS PER ASME B.40.1

1.5″/2″ : 3-2-3 (Grade B)

2.5″/3″/4″ : 2-1-2 (Grade A)

NSF Pressure Gauges

NSF Pressure Gauges

Product Description

SPECIAL FEATURES

SPECIFICATION

Datasheet

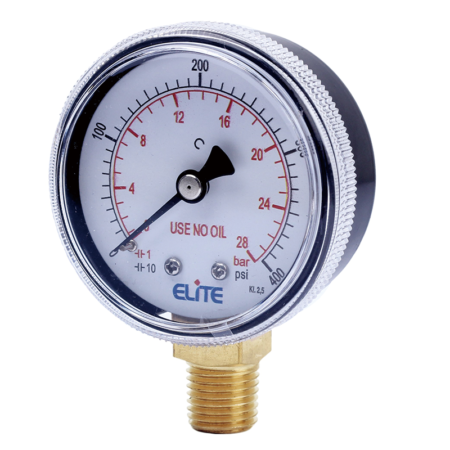

Oxygen Service Pressure Gauges

Model: P-38

Differential Guages

Model: P-14

Forged Brass Guages

Model: P-18

All SS Solid Front Pressure Gauge

Model: P-09

All SS Pressure Gauge

Model: P-11

Magnetic Differential Pressure Guages

Model: P-24

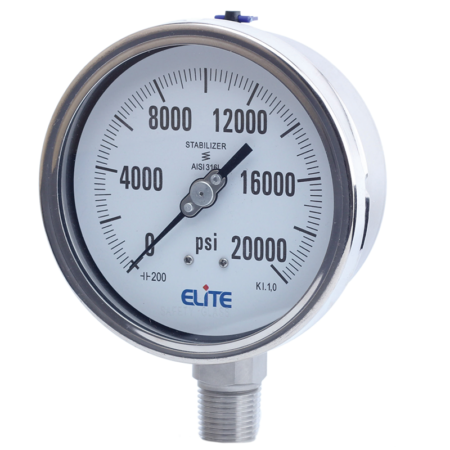

All SS High Pressure Gauges

Model: P-21

All SS Pressure Guage Capsule Type (Low Pressure)

Model: P-06

SS Case Low & High Pressure Gauges

Model: P-13

SIngle Diaphragm Differential Pressure Gauges

Model: P-32

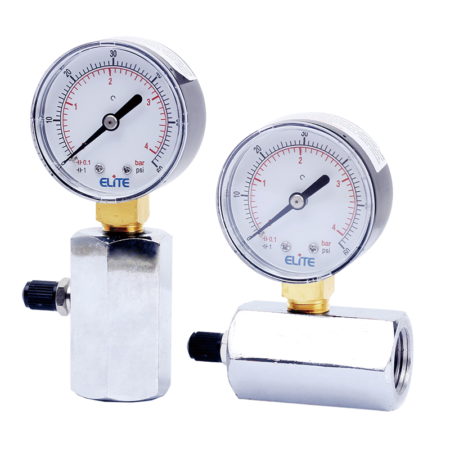

Gas Test Pressure Gauges
