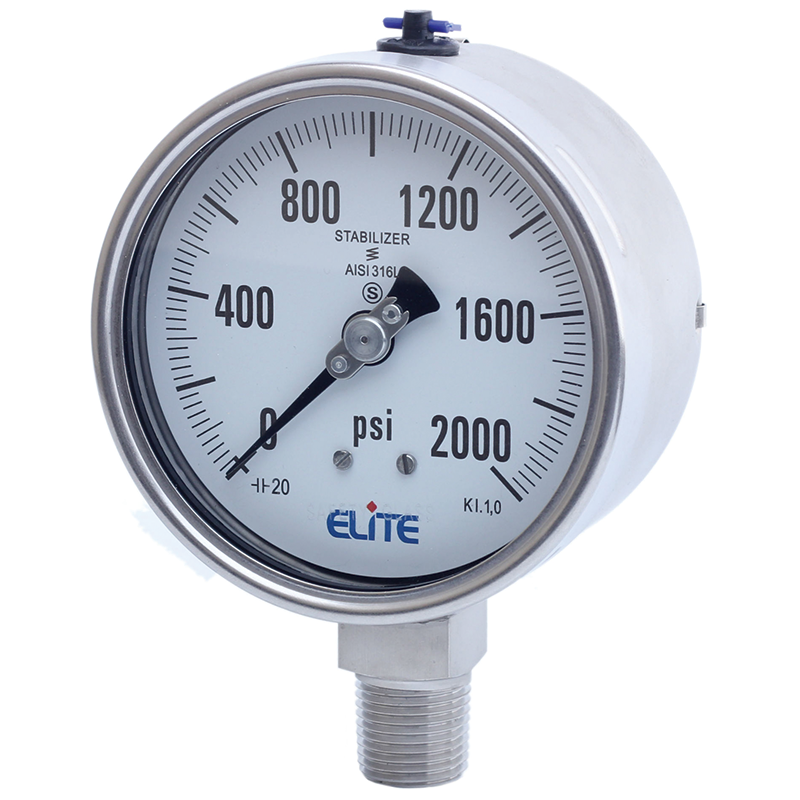

All SS Solid Front Pressure Gauge

SKU:P-09

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Standard Followed ASME-B 40.1 / EN837-1

Stainless Steel Case With Solid Front Design

Wetted Parts AISI 316L Stainless Steel

Build in Stabilizer Movement

Dry or Liquid Version

Silicone fillable version availability

NACE MR 0175 Compliance

Helium Leak Tested

Laser Welded Case Design

Ready For Oxygen Service

Internal Vacuum/ Over pressure Stops

IP 66

SPECIFICATION

Ambient Temperature: -4 ?F (-20?C) to +150?F (+65?C)

Process Temperature: Max. 392?F (200?C)

Operating Pressure Range: 75% of Scale Value

Over Pressure Limit: 125% of Max. Scale Value

Case: AISI 304 SS

Joints: Tig Argon Arc Welding

Socket: AISI 316L SS

Bourdon: AISI 316L SS

Movement: AISI 304 SS

Dial: Aluminum

Pointer: Micro Zero Adjustable

Window: Safety Glass

Range: Vacuum to 10,000PSI

ACCURACY AS PER ASME B.40.1

2.5″ : 2-1-2 (GRADE A )

4?/4.5″/6″ : 1-1-1 (GRADE 1A )
