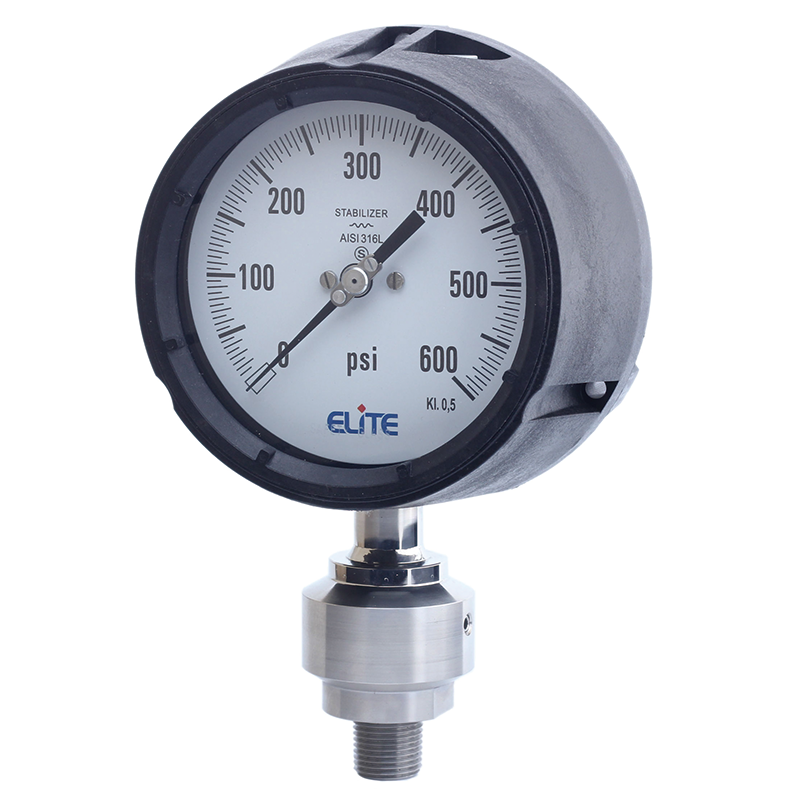

Phenolic Case Gauges With Diaphragm Seal

SKU:P-33

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Phenolic Case With Solid Front Design

Blow Out Back

With Diaphragm Seal

Standard Followed ASME ?B.40.1

Helium Leak Tested

Built In Stabilizer Movement

Ready For Oxygen Use

Internal Vacuum /Over Pressure Stop

IP:66

SPECIFICATION

Ambient Temperature : -4 ?F (-20?C) to + 150?F (+65?C)

Process Temperature : Max. 392?F (200?C)

Operating Pressure Range : 75% of Scale Value

Over Pressure Limit : 150% of Max. Scale Value

Case : Phenolic

Joints : Tig Argon Arc Welding

Socket: AISI 316L SS

Diaphragm: AISI 316L SS

Movement : AISI 304 SS

Dial :Aluminum

Pointer : Micro Zero Adjustable

Window : Safety Glass

Range : Vacuum to 6,000 psi

ACCURACY AS PER ASME B.40.1

4.5? : 0.5-0.5-0.5 (GRADE 2A )
