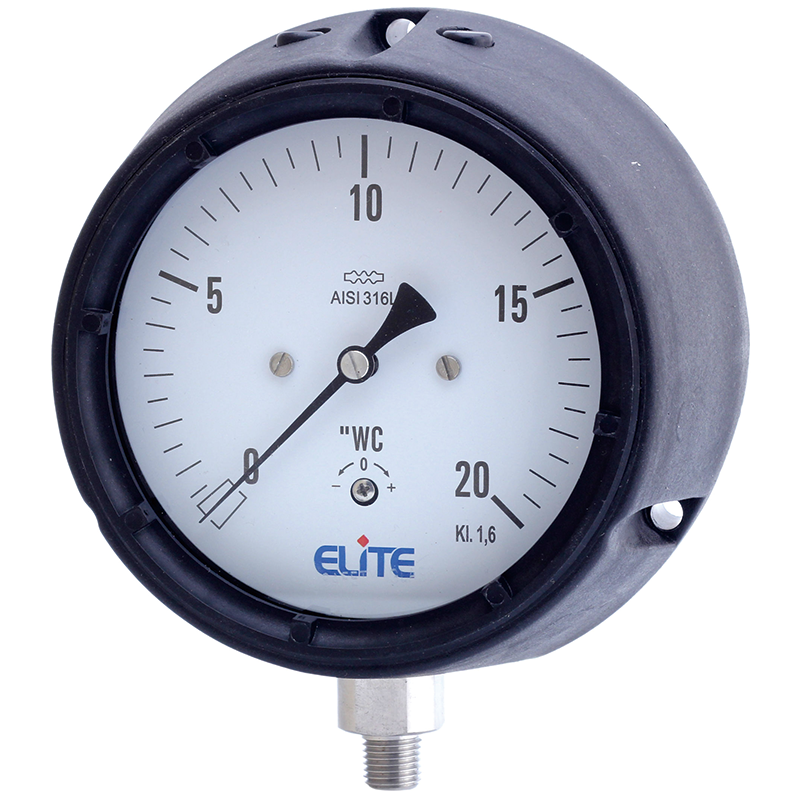

Phenolic Case Capsule Gauges

SKU:P-08

Category:

Pressure

Description
Datasheet

Product Description

SPECIAL FEATURES

Standard Followed ASME-B 40.1

Phenolic Case With Solid Front Design

Blow Out Back

Wetted Parts AISI 316L Stainless Steel

External Zero Adjustable

Ready For Oxygen Service

IP 65

SPECIFICATION

Ambient Temperature : -4 ?F (-20?C) to +150?F (+65?C)_x000B_Process Temperature : Max. 248?F (120?C)

Operating Pressure Range : 75% of Scale Value

Over Pressure Limit : 110% of Max. Scale Value

Case : Phenolic

Joints : Tig Argon Arc Welding

Socket : AISI 316L SS

Capsule : AISI 316L SS

Movement : AISI 304 SS

Dial : Aluminum

Pointer : Fixed_x000B_ Window : Safety Glass_x000B_Range : -250-0″wc to 0-250″wc

ACCURACY AS PER ASME B.40.1

4.5? : 2-1-2 (GRADE A )
